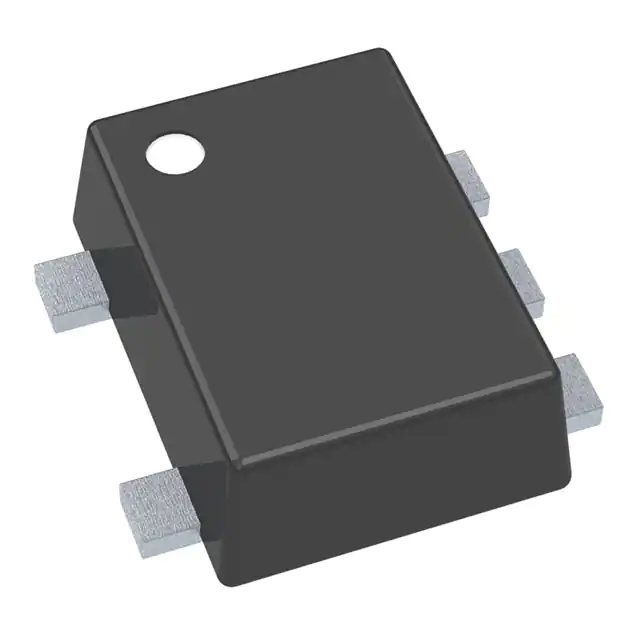

| Part Number | NL17SV04XV5T2 | NL17SV04XV5T2G | NL17SZ04XV5T2 | NL17SV08XV5T2 | NL17SV00XV5T2 | NL17SV02XV5T2 |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | Inverter | Inverter | Inverter | AND Gate | NAND Gate | NOR Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 | 2 | 2 | 2 |
| Features | - | - | - | - | - | - |
| Voltage - Supply | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 1.65V ~ 5.5V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 900 nA | 900 nA | 1 µA | 900 nA | 900 nA | 900 nA |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 32mA, 32mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | - | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V |
| Logic Level - High | 1.6V ~ 2V | 1.6V ~ 2V | - | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | 2.3ns @ 3V, 30pF | 2.3ns @ 3V, 30pF | 4.3ns @ 5V, 50pF | 2.3ns @ 3V, 30pF | 2.3ns @ 3V, 30pF | 3.3ns @ 3V, 30pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-553 | SOT-553 | SOT-553 | SOT-553 | SOT-553 | SOT-553 |
| Package / Case | SOT-553 | SOT-553 | SOT-553 | SOT-553 | SOT-553 | SOT-553 |
