Please send RFQ , we will respond immediately.

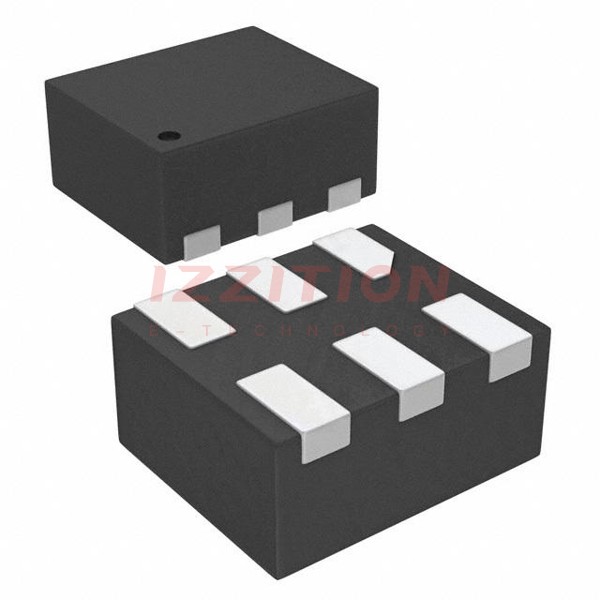

| Part Number | NL17SG04MU1TCG | NL17SG14MU1TCG | NL17SGU04MU1TCG | NL17SG08MU1TCG | NL17SG00MU1TCG | NL17SG02MU1TCG |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active | Active | Active | Active |
| Logic Type | Inverter | Inverter | Inverter | AND Gate | NAND Gate | NOR Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 | 2 | 2 | 2 |
| Features | - | Schmitt Trigger | - | - | - | - |
| Voltage - Supply | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.3V ~ 1.16V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V | 0.86V ~ 2.05V | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4.4ns @ 3.3V, 30pF | 5.2ns @ 3.3V, 30pF | 4.4ns @ 3.3V, 30pF | 4.9ns @ 3.3V, 30pF | 4.9ns @ 3.3V, 30pF | 4.4ns @ 3.3V, 30pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-UDFN (1x1) | 6-UDFN (1.45x1) | 6-UDFN (1x1) | 6-UDFN (1.45x1) | 6-UDFN (1.45x1) | 6-UDFN (1.45x1) |
| Package / Case | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN |
