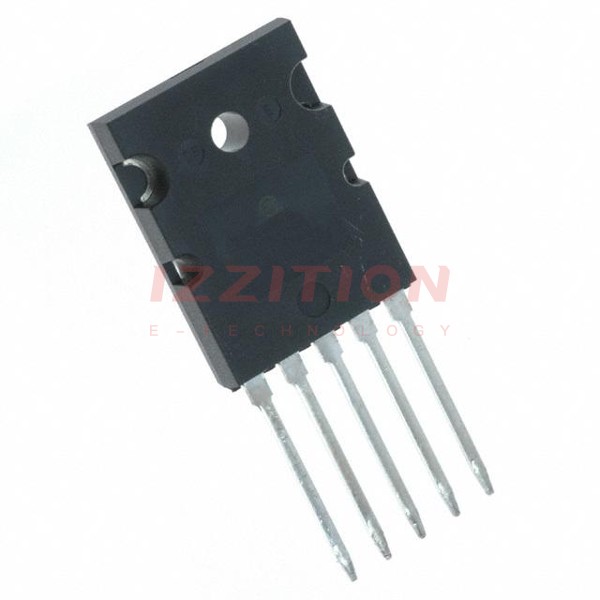

| Part Number | NJL4281DG | NJL0281DG | NJL3281DG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active |
| Transistor Type | NPN + Diode (Isolated) | NPN | NPN |
| Current - Collector (Ic) (Max) | 15 A | 15 A | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 350 V | 260 V | 260 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 800mA, 8A | 1V @ 500mA, 5A | 3V @ 1A, 10A |
| Current - Collector Cutoff (Max) | 100µA | 10µA (ICBO) | 50µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5A, 5V | 75 @ 3A, 5V | 75 @ 5A, 5V |
| Power - Max | 230 W | 180 W | 200 W |
| Frequency - Transition | 35MHz | 30MHz | 30MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-264-5 | TO-264-5 | TO-264-5 |
| Supplier Device Package | TO-264 | TO-264 | TO-264 |
