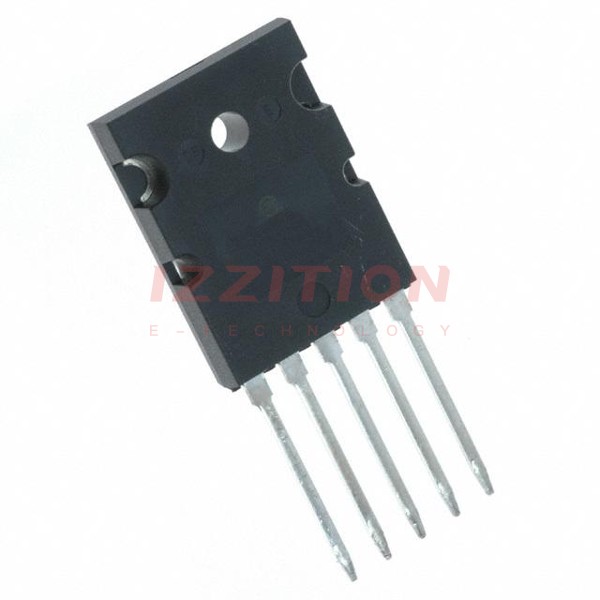

| Part Number | NJL21194DG | NJL21193DG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Transistor Type | NPN | PNP |
| Current - Collector (Ic) (Max) | 16 A | 16 A |
| Voltage - Collector Emitter Breakdown (Max) | 250 V | 250 V |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 3.2A, 16A | 4V @ 3.2A, 16A |
| Current - Collector Cutoff (Max) | 100µA | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 8A, 5V | 25 @ 8A, 5V |
| Power - Max | 200 W | 200 W |
| Frequency - Transition | 4MHz | 4MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-264-5 | TO-264-5 |
| Supplier Device Package | TO-264 | TO-264 |
