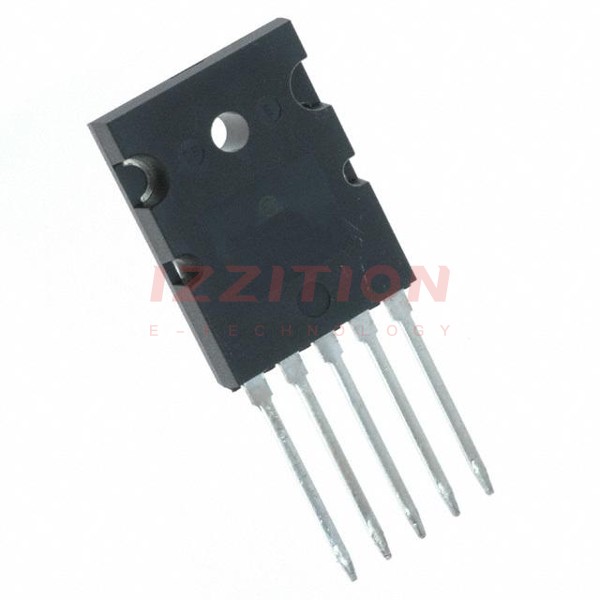

| Part Number | NJL1302D | NJL1302DG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Active |
| Transistor Type | PNP | PNP + Diode (Isolated) |
| Current - Collector (Ic) (Max) | 15 A | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 260 V | 260 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 1A, 10A | 3V @ 1A, 10A |
| Current - Collector Cutoff (Max) | 50µA (ICBO) | 50µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 75 @ 5A, 5V | 75 @ 5A, 5V |
| Power - Max | 200 W | 200 W |
| Frequency - Transition | 30MHz | 30MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-264-5 | TO-264-5 |
| Supplier Device Package | TO-264 | TO-264 |
