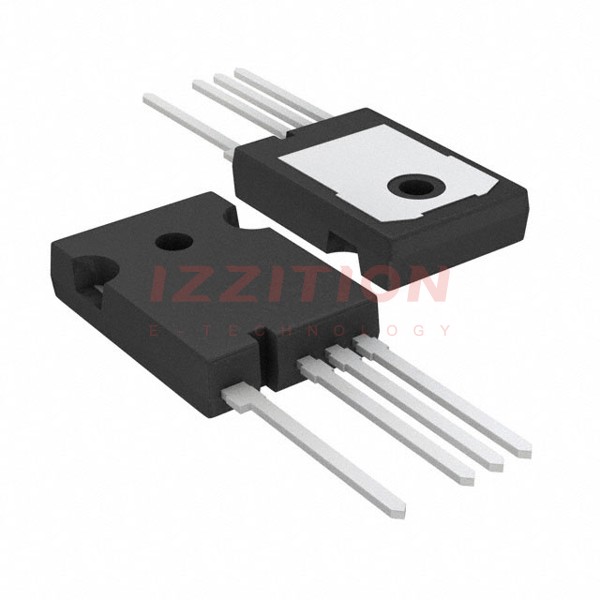

| Part Number | NGTB40N120FL2WAG | NGTB50N120FL2WAG | NGTB40N120FL2WG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active |
| IGBT Type | Field Stop | - | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | - | 1200 V |
| Current - Collector (Ic) (Max) | 160 A | - | 80 A |
| Current - Collector Pulsed (Icm) | 160 A | - | 200 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A | - | 2.4V @ 15V, 40A |
| Power - Max | 536 W | - | 535 W |
| Switching Energy | 1.7mJ (on), 1.1mJ (off) | - | 3.4mJ (on), 1.1mJ (off) |
| Input Type | Standard | - | Standard |
| Gate Charge | 313 nC | - | 313 nC |
| Td (on/off) @ 25°C | 30ns/145ns | - | 116ns/286ns |
| Test Condition | 600V, 40A, 10Ohm, 15V | - | 600V, 40A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 240 ns | - | 240 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | - | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | - | Through Hole |
| Package / Case | TO-247-4 | - | TO-247-3 |
| Supplier Device Package | TO-247-4L | - | TO-247 |
