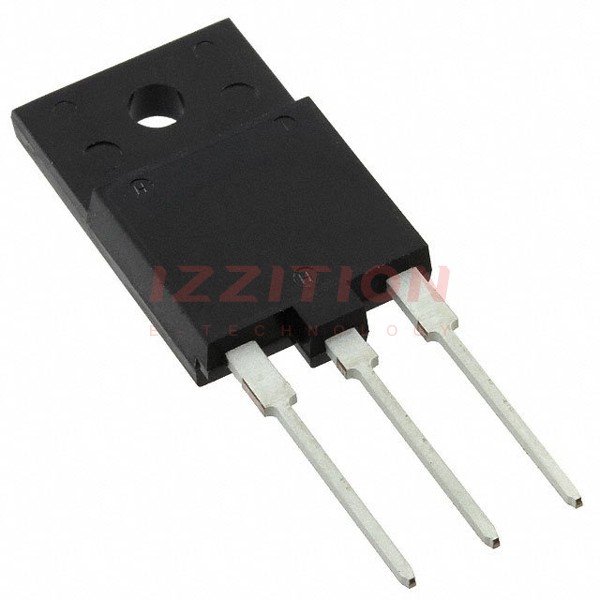

| Part Number | NDUL03N150CG | NDUL09N150CG | NDTL03N150CG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1500 V | 1500 V | 1500 V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) | 9A (Ta) | 2.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 10.5Ohm @ 1.25A, 10V | 3Ohm @ 3A, 10V | 10.5Ohm @ 1.25A, 10V |
| Vgs(th) (Max) @ Id | - | 4V @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V | 114 nC @ 10 V | 34 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 650 pF @ 30 V | 2025 pF @ 30 V | 650 pF @ 30 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 3W (Ta), 50W (Tc) | 3W (Ta), 78W (Tc) | 2.5W (Ta), 140W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-3P(L) | TO-3PF-3 | TO-3P(L) |
| Package / Case | TO-3PL | TO-3P-3 Full Pack | TO-3PL |
