onsemi-NDSH25170A - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max):	1700 V
Current - Average Rectified (Io):	25A
Voltage - Forward (Vf) (Max) @ If:	1.75 V @ 25 A
Speed:	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr):	0 ns
Current - Reverse Leakage @ Vr:	40 µA @ 1700 V
Capacitance @ Vr, F:	2025pF @ 1V, 100kHz
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247-2
Operating Temperature - Junction:	-55°C ~ 175°C

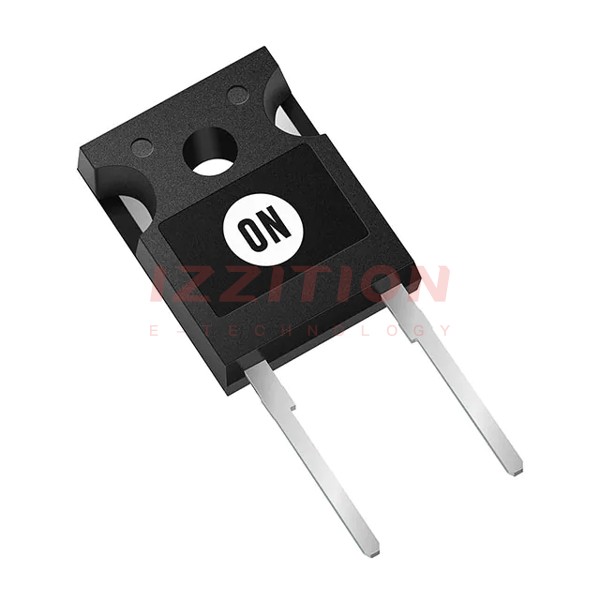

onsemi NDSH25170A
