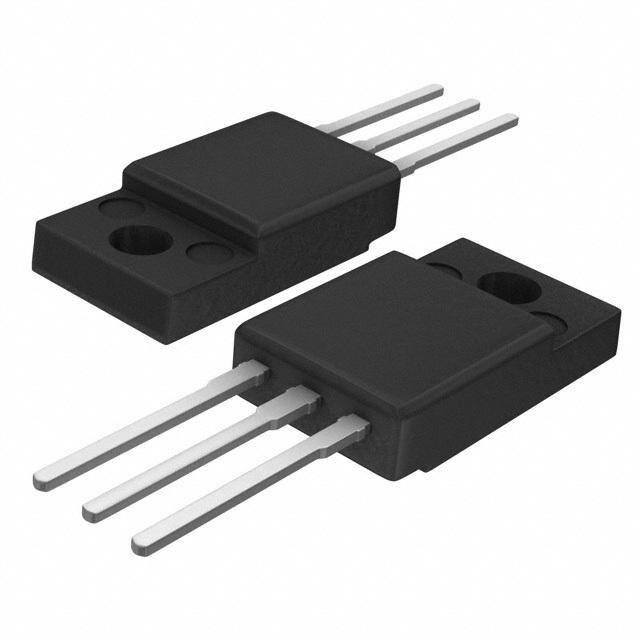

| Part Number | NDF08N50ZG | NDF08N60ZG | NDF08N50ZH | NDF05N50ZG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 600 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 8.5A (Tc) | 8.4A (Tc) | 8.5A (Tc) | 5.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 850mOhm @ 3.6A, 10V | 950mOhm @ 3.5A, 10V | 850mOhm @ 3.6A, 10V | 1.5Ohm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 100µA | 4.5V @ 100µA | 4.5V @ 100µA | 4.5V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 46 nC @ 10 V | 39 nC @ 10 V | 46 nC @ 10 V | 28 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1095 pF @ 25 V | 1140 pF @ 25 V | 1095 pF @ 25 V | 632 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 35W (Tc) | 36W (Tc) | 35W (Tc) | 30W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220-2 Full Pack | TO-220FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
