Please send RFQ , we will respond immediately.

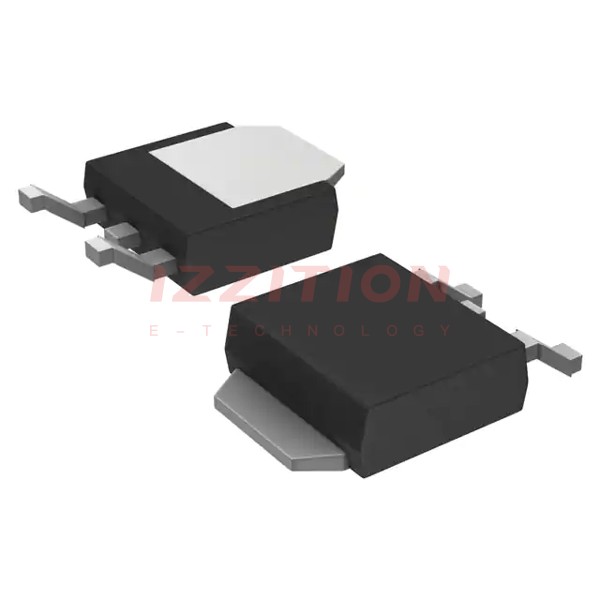

| Part Number | NDD03N80ZT4G | NDD03N40ZT4G | NDD03N50ZT4G | NDD03N60ZT4G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 400 V | 500 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 2.9A (Tc) | 2.1A (Tc) | 2.6A (Tc) | 2.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 4.5Ohm @ 1.2A, 10V | 3.4Ohm @ 600mA, 10V | 3.3Ohm @ 1.15A, 10V | 3.6Ohm @ 1.2A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA | 4.5V @ 50µA | 4.5V @ 50µA | 4.5V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V | 6.6 nC @ 10 V | 16 nC @ 10 V | 12 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 440 pF @ 25 V | 140 pF @ 50 V | 329 pF @ 25 V | 312 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 96W (Tc) | 37W (Tc) | 58W (Tc) | 61W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DPAK-3 | DPAK | DPAK | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
