onsemi-NCV87721D5S50R4G - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	40V
Voltage - Output (Min/Fixed):	5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.875V @ 350mA
Current - Output:	350mA
Current - Quiescent (Iq):	29 µA
Current - Supply (Max):	30 µA
PSRR:	60dB (100Hz)
Control Features:	Enable, Reset
Protection Features:	Over Current, Over Temperature, Reverse Polarity
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Surface Mount

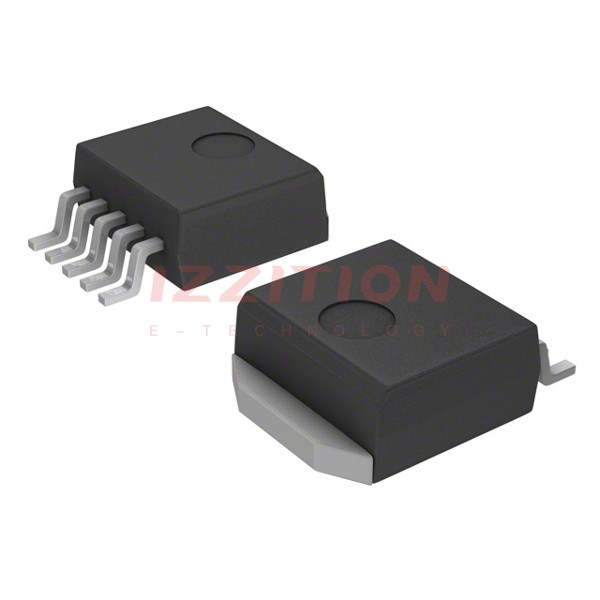

Package / Case:	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package:	D2PAK-5

onsemi NCV87721D5S50R4G
