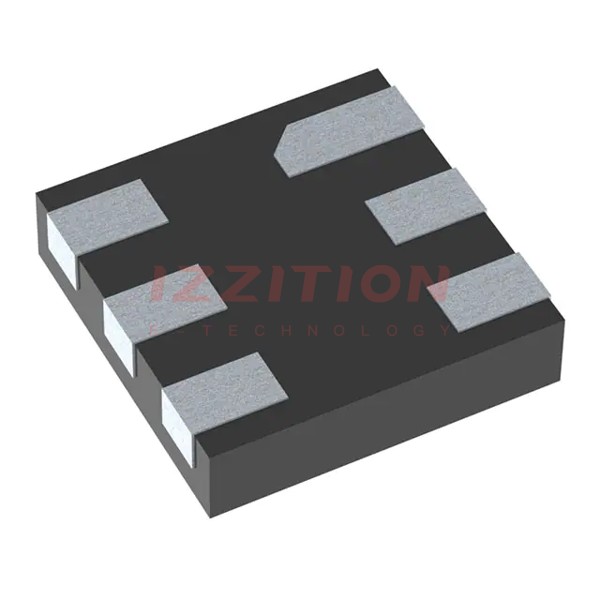

| Part Number | NCV8752AMX28TCG | NCV8752BMX28TCG | NCV8752AMX18TCG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V | 2.8V | 1.8V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | - | - | - |
| Current - Output | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 25 µA | 25 µA | 25 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | - | - | - |
| Control Features | Enable, Power Good | Enable, Power Good | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN | 6-XFDFN | 6-XFDFN |
| Supplier Device Package | 6-XDFN (1.5x1.5) | 6-XDFN (1.5x1.5) | 6-XDFN (1.5x1.5) |
