onsemi-NCV8730BMTW330TBG - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	38V
Voltage - Output (Min/Fixed):	3.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.48V @ 150mA
Current - Output:	150mA
Current - Quiescent (Iq):	3 µA
Current - Supply (Max):	450 µA
PSRR:	80dB ~ 48dB (10Hz ~ 1MHz)
Control Features:	Enable, Power Good, Soft Start
Protection Features:	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount, Wettable Flank
Package / Case:	6-WDFN Exposed Pad
Supplier Device Package:	6-WDFNW (2x2)

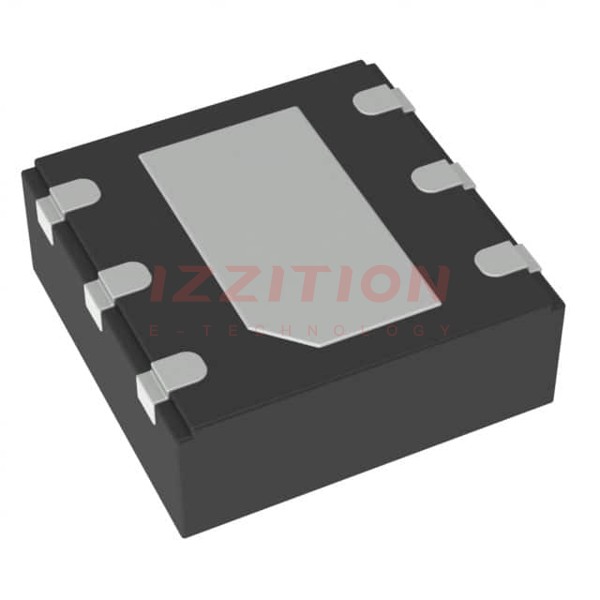

onsemi NCV8730BMTW330TBG
