| Part Number | NCV8730BMTW1500TBG | NCV8730BMTW500TBG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 38V | 38V |
| Voltage - Output (Min/Fixed) | 15V | 5V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.48V @ 150mA | 0.48V @ 150mA |
| Current - Output | 150mA | 150mA |
| Current - Quiescent (Iq) | 3 µA | 3 µA |
| Current - Supply (Max) | 450 µA | 450 µA |
| PSRR | 80dB ~ 48dB (10Hz ~ 1MHz) | 80dB ~ 48dB (10Hz ~ 1MHz) |
| Control Features | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

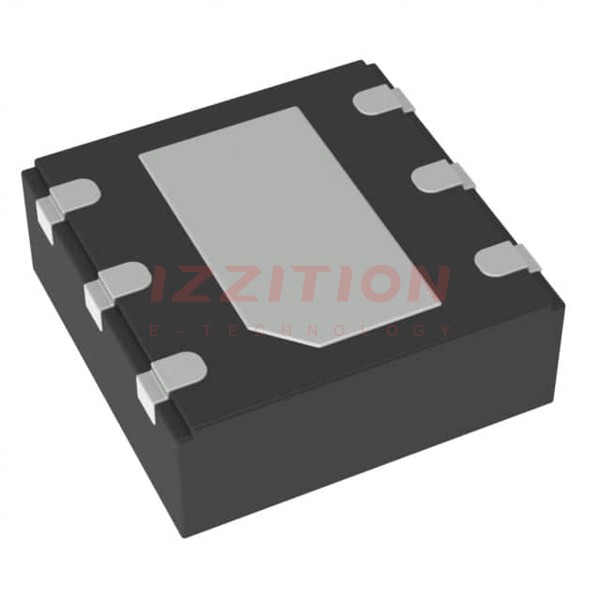

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFNW (2x2) | 6-WDFNW (2x2) |
