Please send RFQ , we will respond immediately.
| Part Number | NCV8720BMTW180TBG | NCV8720BMT180TBG | NCV8720BMTW110TBG | NCV8720BMTW120TBG | NCV8720BMTW130TBG | NCV8720BMTW150TBG |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | - | Positive | Positive | Positive | Positive | Positive |
| Output Type | - | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | - | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | - | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | - | 1.8V | 1.1V | 1.2V | 1.3V | 1.5V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.2V @ 350mA | 0.2V @ 350mA | 0.2V @ 350mA | 0.2V @ 350mA | 0.2V @ 350mA |
| Current - Output | - | 350mA | 350mA | 350mA | 350mA | 350mA |
| Current - Quiescent (Iq) | - | - | - | - | - | - |
| Current - Supply (Max) | - | - | - | - | - | - |
| PSRR | - | 52dB ~ 25dB (10Hz ~ 1MHz) | 52dB ~ 25dB (10Hz ~ 1MHz) | 52dB ~ 25dB (10Hz ~ 1MHz) | 52dB ~ 25dB (10Hz ~ 1MHz) | 52dB ~ 25dB (10Hz ~ 1MHz) |
| Control Features | - | Enable | Enable | Enable | Enable | Enable |
| Protection Features | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | - | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

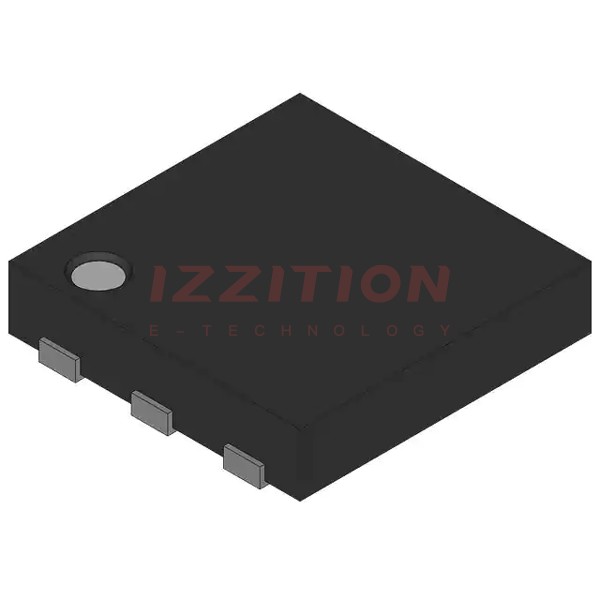

| Package / Case | - | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | - | 6-WDFN (2x2) | 6-WDFN (2x2) | 6-WDFN (2x2) | 6-WDFN (2x2) | 6-WDFN (2x2) |
