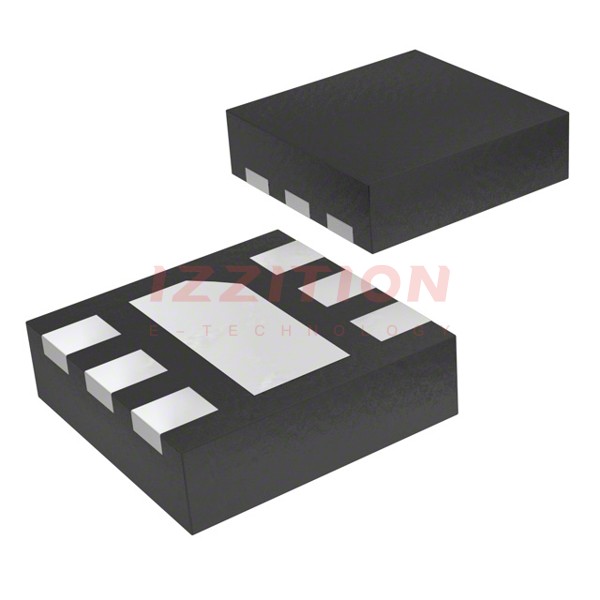

onsemi-NCV8720BMTW090TBG - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	0.9V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.2V @ 350mA
Current - Output:	350mA
Current - Quiescent (Iq):	110 µA
Current - Supply (Max):	-
PSRR:	52dB ~ 25dB (10Hz ~ 1MHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	6-WDFN Exposed Pad
Supplier Device Package:	6-WDFN (2x2)

onsemi NCV8720BMTW090TBG
