| Part Number | NCV8715MX15TBG | NCV8715MX25TBG | NCV8715MX18TBG | NCV8715MX12TBG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 24V | 24V | 24V | 24V |
| Voltage - Output (Min/Fixed) | 1.5V | 2.5V | 1.8V | 1.2V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | - | 0.45V @ 50mA | - | - |
| Current - Output | 50mA | 50mA | 50mA | 50mA |
| Current - Quiescent (Iq) | 5.8 µA | 5.8 µA | 5.8 µA | - |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 56dB (100kHz) | 60dB (100kHz) | 60dB (100kHz) | 60dB (100kHz) |
| Control Features | - | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

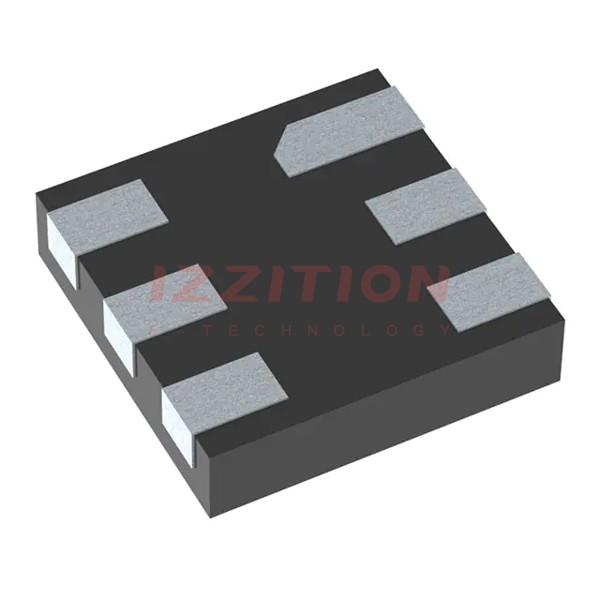

| Package / Case | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN |
| Supplier Device Package | 6-XDFN (1.5x1.5) | 6-XDFN (1.5x1.5) | 6-XDFN (1.5x1.5) | 6-XDFN (1.5x1.5) |
