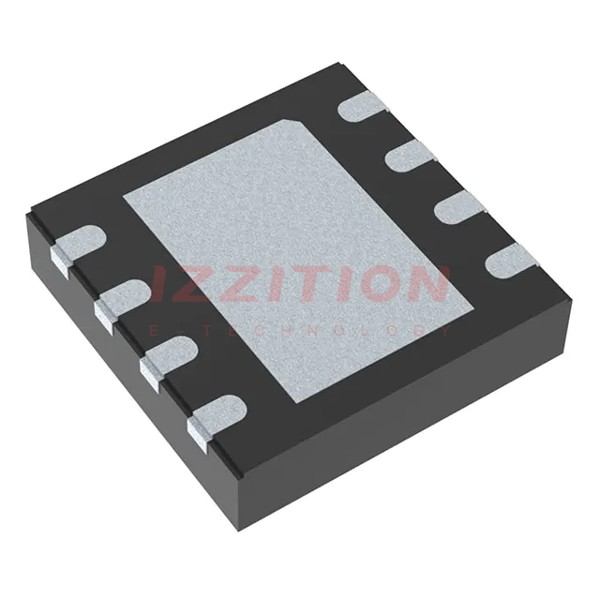

| Part Number | NCV8705ML33TCG | NCV8705MT33TCG | NCV8705MW33TCG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.35V @ 500mA | - | - |
| Current - Output | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 25 µA | 25 µA | 25 µA |
| Current - Supply (Max) | 260 µA | - | - |
| PSRR | 73dB ~ 56dB (100Hz ~ 10kHz) | - | - |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad | 6-WDFN Exposed Pad | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-DFNW (3x3) | 6-WDFN (2x2) | 8-DFN (3x3) |
