onsemi-NCV8570MN275R2G - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	2.75V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.205V @ 200mA
Current - Output:	200mA
Current - Quiescent (Iq):	90 µA
Current - Supply (Max):	220 µA
PSRR:	80dB ~ 65dB (120Hz ~ 10kHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	6-VDFN Exposed Pad
Supplier Device Package:	6-DFN (2x2.2)

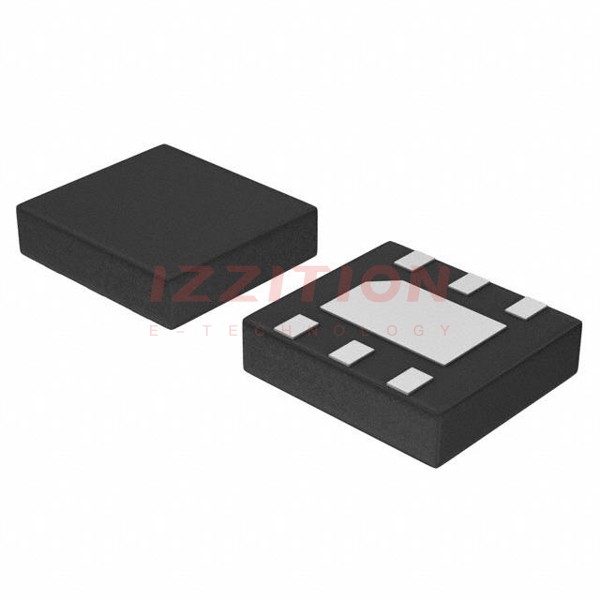

onsemi NCV8570MN275R2G
