Please send RFQ , we will respond immediately.
| Part Number | NCV8509PDW25R2 | NCV8509PDW26R2 | NCV8509PDW25R2G | NCV8502PDW25R2 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 2 | 2 | 2 | 1 |
| Voltage - Input (Max) | 50V | 50V | 50V | 45V |
| Voltage - Output (Min/Fixed) | 5V, 2.5V | 5V, 2.6V | 5V, 2.5V | 2.5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 100mA, - | 0.6V @ 100mA, - | 0.6V @ 100mA, - | - |
| Current - Output | 115mA, 100mA | 115mA, 100mA | 115mA, 100mA | 150mA |
| Current - Quiescent (Iq) | 175 µA | 175 µA | 175 µA | 125 µA |
| Current - Supply (Max) | 10 mA | 10 mA | 10 mA | 19 mA |
| PSRR | - | - | - | - |
| Control Features | Reset | Reset | Reset | Enable, Reset |
| Protection Features | Over Temperature | Over Temperature | Over Temperature | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

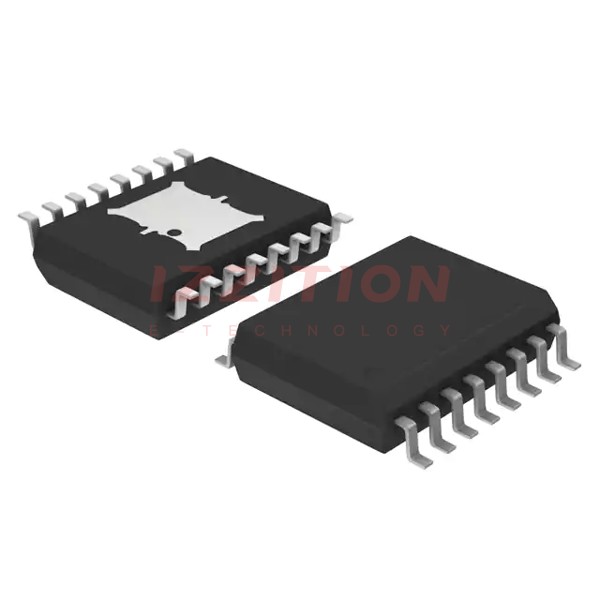

| Package / Case | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | 16-SOIC (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 16-SOIC | 16-SOIC | 16-SOIC | 16-SOIC |
