| Part Number | NCV8406STT3G | NCV8402STT3G | NCV8405STT3G | NCV8406ASTT3G | NCV8406STCT3G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Discontinued at Digi-Key |
| Switch Type | General Purpose | - | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | - | 1:1 | 1:1 | 1:1 |
| Output Configuration | Low Side | Low Side | Low Side | Low Side | Low Side |
| Output Type | N-Channel | - | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | - | On/Off | On/Off | On/Off |
| Voltage - Load | 60V (Max) | - | 42V (Max) | 60V (Max) | 60V |
| Voltage - Supply (Vcc/Vdd) | Not Required | - | Not Required | Not Required | Not Required |
| Current - Output (Max) | 5A | 2A | 6A | 7A | 7A |
| Rds On (Typ) | 185mOhm | 165mOhm | 90mOhm | 185mOhm | 185mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Auto Restart | - | Auto Restart | Auto Restart | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | - | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

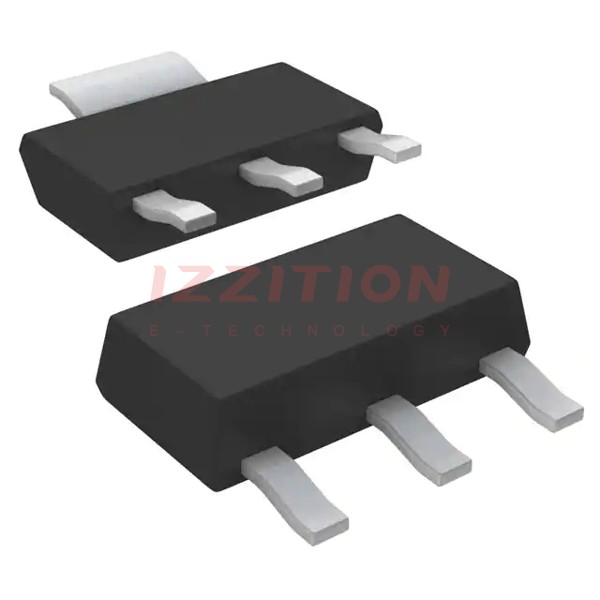

| Supplier Device Package | SOT-223 | SOT-223 (TO-261) | SOT-223 (TO-261) | SOT-223 (TO-261) | SOT-223 (TO-261) |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
