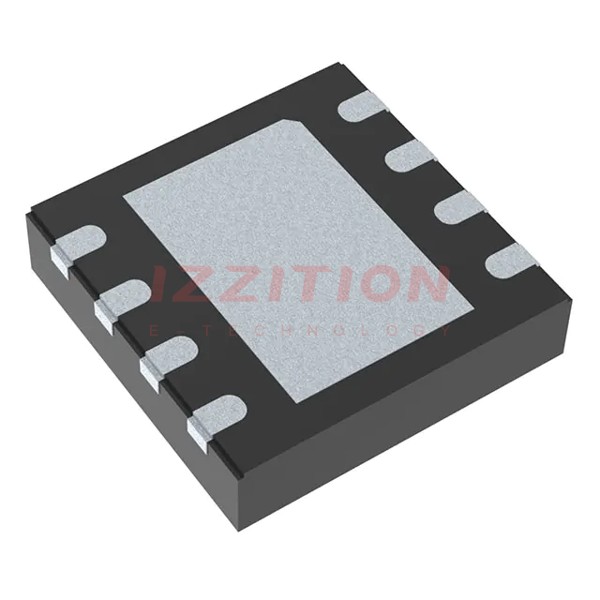

| Part Number | NCV8164AML180TCG | NCV8164AML280TCG | NCV8164AML120TCG | NCV8164AML150TCG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 2.8V | 1.2V | 1.5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.275V @ 300mA | 0.205V @ 300mA | - | 0.315V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 40 µA | 40 µA | 40 µA | 40 µA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 83dB ~ 61dB (100Hz ~ 100kHz) | 83dB ~ 61dB (100Hz ~ 100kHz) | 83dB ~ 61dB (100Hz ~ 100kHz) | 83dB ~ 61dB (100Hz ~ 100kHz) |
| Control Features | Enable, Power Good | Enable, Power Good | Enable, Power Good | Enable, Power Good |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-DFNW (3x3) | 8-DFNW (3x3) | 8-DFNW (3x3) | 8-DFNW (3x3) |
