Please send RFQ , we will respond immediately.

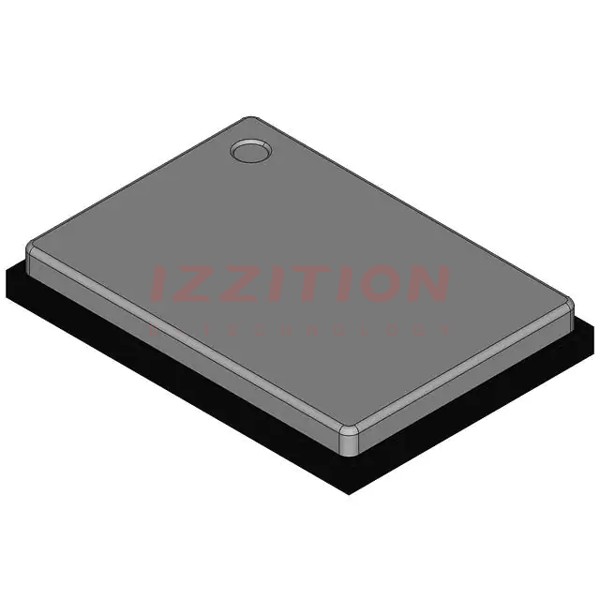

| Part Number | NCV8161AMX250TBG | NCV8161AMX280TBG | NCV8161BMX250TBG | NCV8161AMX290TBG | NCV8163AMX250TBG | NCV8160AMX250TBG |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | - | Positive | - | Positive | Positive | Positive |
| Output Type | - | Fixed | - | Fixed | Fixed | Fixed |
| Number of Regulators | - | 1 | - | 1 | 1 | 1 |
| Voltage - Input (Max) | - | 5.5V | - | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | - | 2.8V | - | 2.9V | 2.5V | 2.5V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.29V @ 450mA | - | - | 0.175V @ 250mA | 0.175V @ 250mA |
| Current - Output | - | 450mA | - | 450mA | 250mA | 250mA |
| Current - Quiescent (Iq) | - | 23 µA | - | 23 µA | 20 µA | 23 µA |
| Current - Supply (Max) | - | - | - | - | - | - |
| PSRR | - | 91dB ~ 48dB (100Hz ~ 100kHz) | - | 91dB ~ 48dB (100Hz ~ 100kHz) | 92dB ~ 60dB (100Hz ~ 100kHz) | 91dB ~ 48dB (100Hz ~ 100kHz) |
| Control Features | - | Enable | - | Enable | Enable | Enable |
| Protection Features | - | Over Current, Over Temperature | - | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | - | -40°C ~ 125°C (TA) | - | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TA) |
| Mounting Type | - | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 4-XDFN Exposed Pad | - | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | - | 4-XDFN (1x1) | - | 4-XDFN (1x1) | 4-XDFN (1x1) | 4-XDFN (1x1) |
