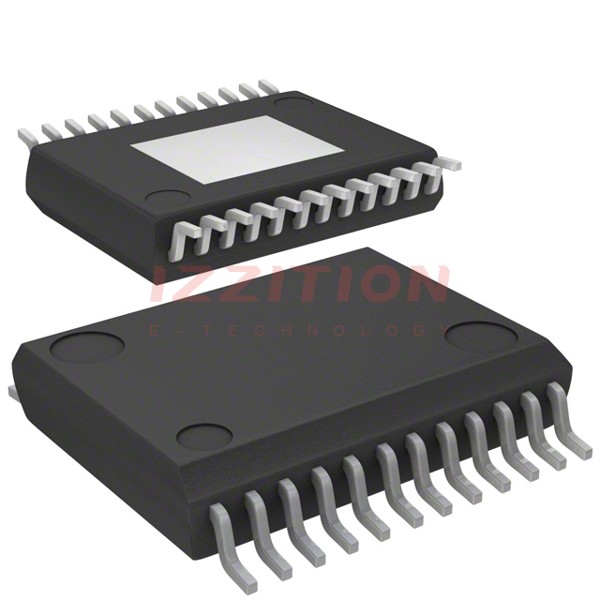

| Part Number | NCV7726DQAR2G | NCV7726DQBR2G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Output Configuration | Half Bridge (12) | Half Bridge (12) |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | Logic, SPI | Logic, SPI |
| Load Type | Inductive | Inductive |
| Technology | NMOS | NMOS |
| Rds On (Typ) | 850mOhm LS, 850mOhm HS | 850mOhm LS, 850mOhm HS |
| Current - Output / Channel | 500mA | 500mA |
| Current - Peak Output | 1.1A | 1.1A |
| Voltage - Supply | 3.15V ~ 5.25V | 3.15V ~ 5.25V |
| Voltage - Load | 5.5V ~ 32V | 5.5V ~ 32V |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Features | Charge Pump | Charge Pump |
| Fault Protection | Over Current, Over Temperature, Over Voltage, UVLO | Over Current, Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 24-SSOP-EP | 24-SSOP-EP |
