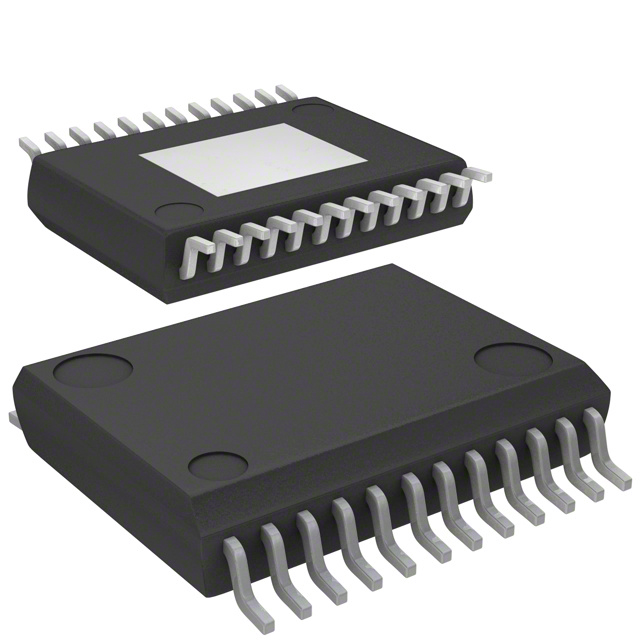

| Part Number | NCV7718CDQR2G | NCV7718BDQR2G | NCV7718CDPR2G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active |
| Motor Type - Stepper | - | - | - |
| Motor Type - AC, DC | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (6) | Half Bridge (6) | Half Bridge (6) |
| Interface | SPI | SPI | SPI |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET |
| Step Resolution | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Current - Output | 550mA | 550mA | 550mA |
| Voltage - Supply | 3.15V ~ 5.25V | 3.15V ~ 5.25V | 3.15V ~ 5.25V |
| Voltage - Load | 5.5V ~ 28V | 5.5V ~ 28V | 5.5V ~ 28V |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | 24-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 24-SSOP-EP | 24-SSOP-EP | 24-SSOP |
