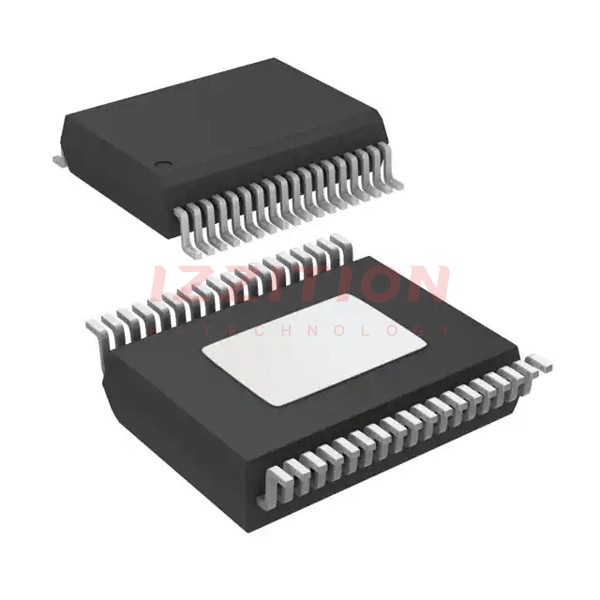

| Part Number | NCV7710DQR2G | NCV7719DQR2G | NCV7720DQR2G | NCV7710DQBR2G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Motor Type - Stepper | - | - | - | Bipolar |
| Motor Type - AC, DC | Brushed DC | Brushed DC | - | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) | Half Bridge (8) | Half Bridge (10) | Half Bridge (2) |
| Interface | SPI | SPI | SPI | PWM, SPI |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET | NMOS |
| Step Resolution | - | - | - | - |
| Applications | Automotive | General Purpose | General Purpose | Automotive |
| Current - Output | 10A | 2A | 550mA | 10A |
| Voltage - Supply | 4.5V ~ 5.25V | 3.15V ~ 5.25V | 3.15V ~ 5.25V | 5.5V ~ 28V |
| Voltage - Load | 8V ~ 18V | 5.5V ~ 28V | 5.5V ~ 28V | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 36-SSOP | 24-SSOP | 24-SSOP-EP | 36-SSOP-EP |
