Please send RFQ , we will respond immediately.

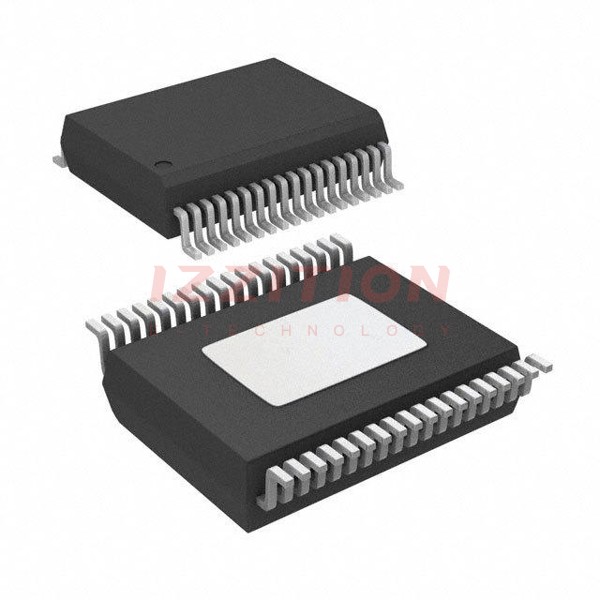

| Part Number | NCV7705DQR2G | NCV7705DQAR2G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Active |
| Motor Type - Stepper | - | - |
| Motor Type - AC, DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4), High Side (5) | Half Bridge (4), High Side (5) |
| Interface | SPI | SPI |
| Technology | - | NMOS |
| Step Resolution | - | - |
| Applications | Automotive | Automotive |
| Current - Output | - | 5A |
| Voltage - Supply | 5.5V | 5.5V ~ 28V |
| Voltage - Load | 5.5V ~ 28V | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 36-SSOP-EP | 36-SSOP-EP |
