Please send RFQ , we will respond immediately.
| Part Number | NCV7684DQR2G | NCV7685DQR2G | NCV7683DQR2G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Not For New Designs | Active | Active |
| Type | Linear | Linear | Linear |
| Topology | - | - | - |
| Internal Switch(s) | Yes | Yes | No |
| Number of Outputs | 12 | 12 | 8 |
| Voltage - Supply (Min) | 5V | 5V | - |
| Voltage - Supply (Max) | 28V | 28V | 40V |
| Voltage - Output | - | - | - |
| Current - Output / Channel | 60mA | 55mA | 100mA |
| Frequency | - | - | - |
| Dimming | I²C, PWM | PWM | PWM |
| Applications | Automotive | Automotive | Automotive |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

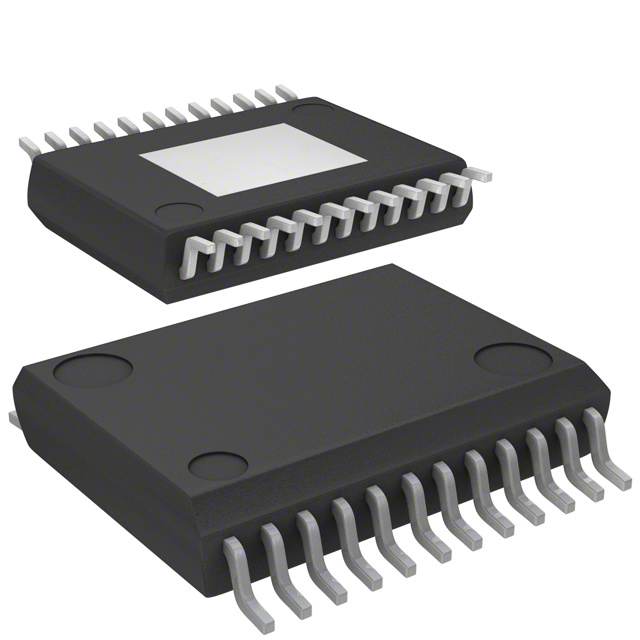

| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | 24-SSOP (0.154", 3.90mm Width) Exposed Pad | 24-SSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 24-SSOP-EP | 24-SSOP-EP | 24-SSOP-EP |
