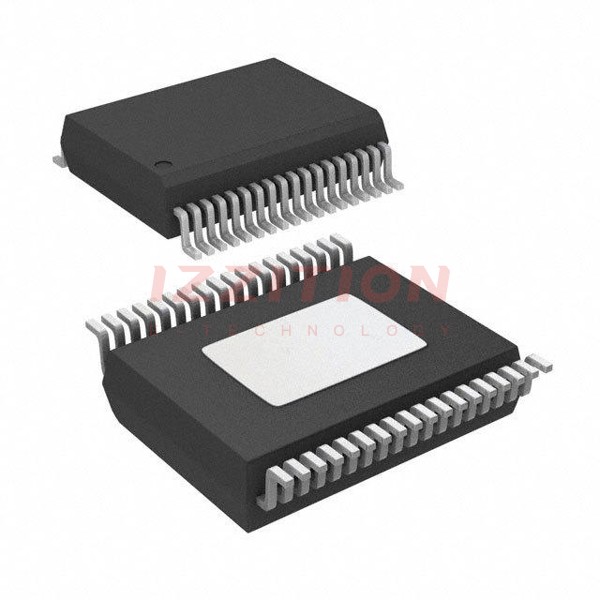

| Part Number | NCV7608DQR2G | NCV7608DWR2G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge (4) | Half Bridge (4) |
| Applications | DC Motors, Lamps, Relays | DC Motors, Lamps, Relays |
| Interface | SPI | SPI |
| Load Type | Inductive, Capacitive, Resistive | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET | Power MOSFET |
| Rds On (Typ) | 1.2Ohm | 1.2Ohm |
| Current - Output / Channel | - | - |
| Current - Peak Output | 250mA | 250mA |
| Voltage - Supply | 3.15V ~ 5.25V | 3.15V ~ 5.25V |
| Voltage - Load | 5.5V ~ 28V | 5.5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | Slew Rate Controlled, Status Flag | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO | Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 36-SSOP-EP | 28-SOIC |
