Please send RFQ , we will respond immediately.
| Part Number | NCV70514MW007AR2G | NCV70514MW007R2G | NCV70514MW003AR2G | NCV70514MW004AR2G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| Motor Type - Stepper | - | Bipolar | Bipolar | - |
| Motor Type - AC, DC | - | - | - | - |
| Function | - | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | - |
| Output Configuration | - | Half Bridge (4) | Half Bridge (4) | - |
| Interface | - | SPI, Step/Direction | SPI, Step/Direction | - |
| Technology | - | Power MOSFET | Power MOSFET | - |
| Step Resolution | - | 1 ~ 1/32 | 1 ~ 1/32 | - |
| Applications | - | General Purpose | General Purpose | - |
| Current - Output | - | - | - | - |
| Voltage - Supply | - | 6V ~ 29V | 6V ~ 29V | - |
| Voltage - Load | - | 0V ~ 5.5V | 6V ~ 29V | - |
| Operating Temperature | - | -40°C ~ 145°C (TJ) | -45°C ~ 175°C (TJ) | - |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

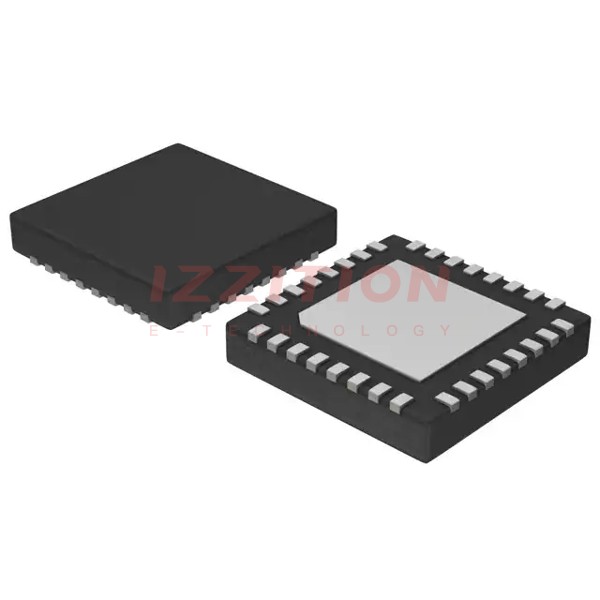

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFNW (5x5) | 32-QFNW (5x5) | 32-QFNW (5x5) | 32-QFNW (5x5) |
