| Part Number | NCV70514MW003AR2G | NCV70514MW004AR2G | NCV70514MW007AR2G | NCV70514MW003R2G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| Motor Type - Stepper | Bipolar | - | - | Bipolar |
| Motor Type - AC, DC | - | - | - | - |
| Function | Driver - Fully Integrated, Control and Power Stage | - | - | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) | - | - | Half Bridge (4) |
| Interface | SPI, Step/Direction | - | - | SPI, Step/Direction |
| Technology | Power MOSFET | - | - | Power MOSFET |
| Step Resolution | 1 ~ 1/32 | - | - | 1 ~ 1/32 |
| Applications | General Purpose | - | - | General Purpose |
| Current - Output | - | - | - | - |
| Voltage - Supply | 6V ~ 29V | - | - | 6V ~ 29V |
| Voltage - Load | 6V ~ 29V | - | - | 0V ~ 5.5V |
| Operating Temperature | -45°C ~ 175°C (TJ) | - | - | -45°C ~ 145°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

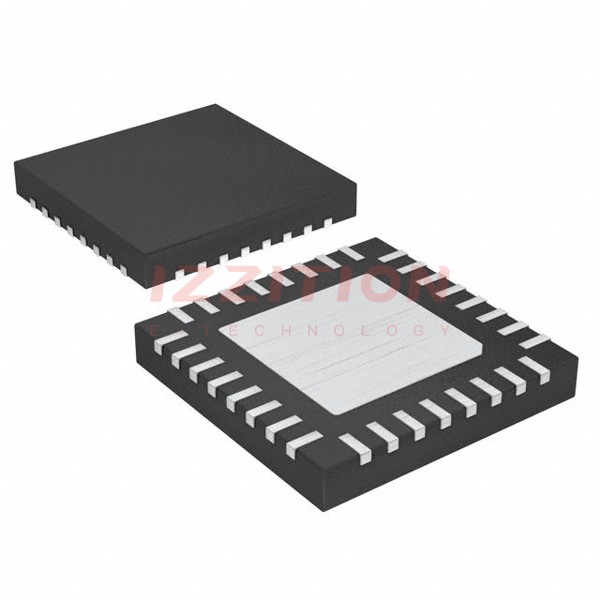

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFNW (5x5) | 32-QFNW (5x5) | 32-QFNW (5x5) | 32-QFNW (5x5) |
