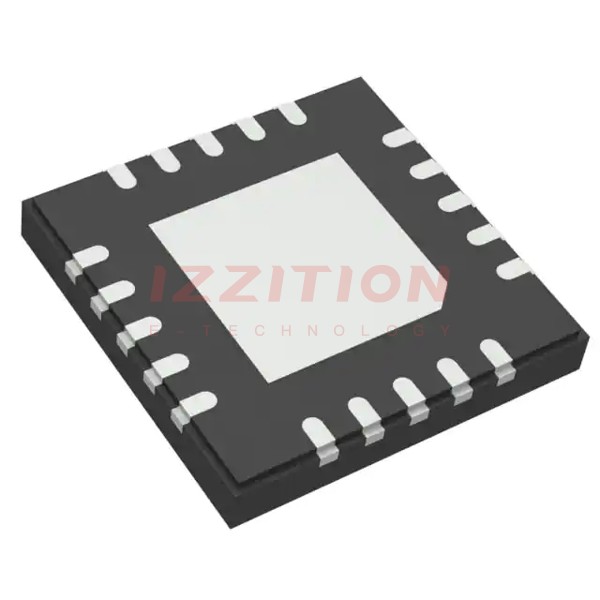

| Part Number | NCV59745AMW100TAG | NCV59745AMW180TAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1V | 1.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 1.4V @ 3A | 0.195V @ 3A |
| Current - Output | 3A | 3A |
| Current - Quiescent (Iq) | 2 mA | 2 mA |
| Current - Supply (Max) | - | - |
| PSRR | 75dB ~ 18dB (1kHz ~ 3MHz) | 75dB ~ 18dB (1kHz ~ 3MHz) |
| Control Features | Enable, Power Good, Soft Start | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFNW (4x4) | 20-QFNW (4x4) |
