Please send RFQ , we will respond immediately.
| Part Number | NCV47822PAAJR2G | NCV47823PAAJR2G | NCV47722PAAJR2G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 2 | 2 | 1 |
| Ratio - Input:Output | 1:1 | 1:2 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | Bipolar | Bipolar | Bipolar |
| Interface | On/Off | Logic | On/Off |
| Voltage - Load | 4.4V ~ 40V | 40V | 4.4V ~ 40V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required |
| Current - Output (Max) | 350mA | 350mA | 250mA |
| Rds On (Typ) | - | - | - |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Status Flag | PWM Input | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature | Current Limiting (Adjustable), Over Temperature | Current Limiting (Adjustable), Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-TSSOP-EP | 14-TSSOP-EP | 14-TSSOP-EP |

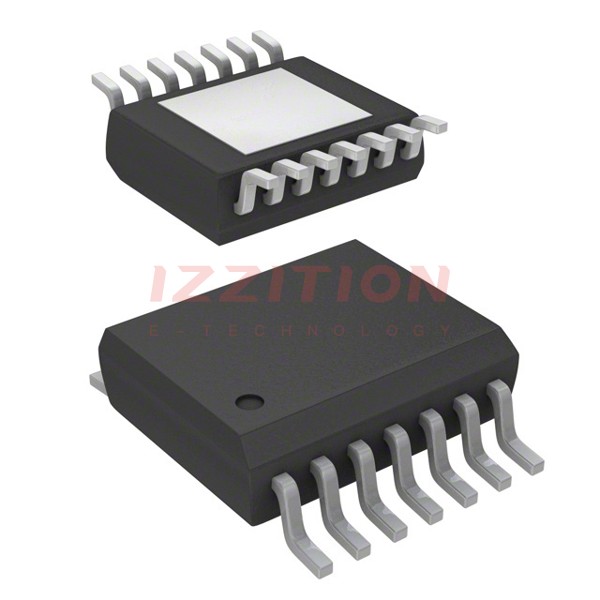

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
