NCV47721PAAJR2G
  • Share:

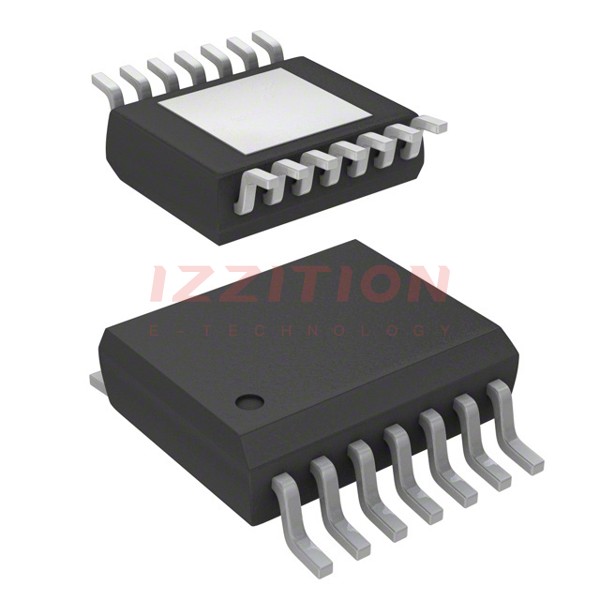

onsemi NCV47721PAAJR2G

Manufacturer No:
NCV47721PAAJR2G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Datasheet:
NCV47721PAAJR2G Datasheet
ECAD Model:
-
Description:
IC REG LIN POS ADJ 200MA 14TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):40V
Voltage - Output (Min/Fixed):3.3V
Voltage - Output (Max):20V
Voltage Dropout (Max):0.5V @ 200mA
Current - Output:200mA
Current - Quiescent (Iq):1 mA
Current - Supply (Max):15 mA
PSRR:80dB (100Hz)
Control Features:Enable, Error Flag
Protection Features:Over Current, Over Temperature, Reverse Polarity
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:14-TSSOP-EP
0 Remaining View Similar

In Stock

$0.73
777

Please send RFQ , we will respond immediately.

Similar Products

Part Number NCV47721PAAJR2G NCV47821PAAJR2G
Manufacturer onsemi onsemi
Product Status Active Active
Output Configuration Positive Positive
Output Type Adjustable Adjustable
Number of Regulators 1 2
Voltage - Input (Max) 40V 45V
Voltage - Output (Min/Fixed) 3.3V 3.3V
Voltage - Output (Max) 20V 20V
Voltage Dropout (Max) 0.5V @ 200mA 0.5V @ 200mA
Current - Output 200mA 200mA
Current - Quiescent (Iq) 1 mA 1 mA
Current - Supply (Max) 15 mA 25 mA
PSRR 80dB (100Hz) 75dB (100Hz)
Control Features Enable, Error Flag Enable
Protection Features Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature
Operating Temperature -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 14-TSSOP-EP 14-TSSOP-EP
