onsemi-NCV4275ADS33G - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	42V
Voltage - Output (Min/Fixed):	3.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	1.17V @ 300mA
Current - Output:	450mA
Current - Quiescent (Iq):	200 µA
Current - Supply (Max):	35 mA
PSRR:	60dB (100Hz)
Control Features:	Reset
Protection Features:	Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package:	D2PAK-5

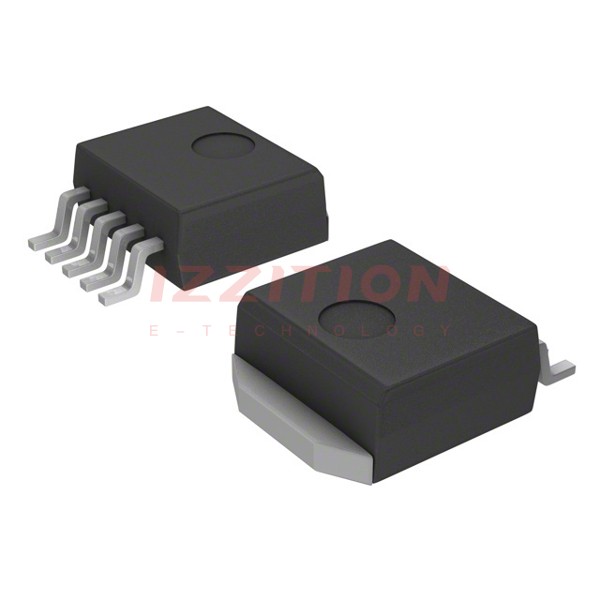

onsemi NCV4275ADS33G
