| Part Number | NCV380LMU15AATBG | NCP380LMU15AATBG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | P-Channel | P-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 1.5A | 1.5A |
| Rds On (Typ) | 55mOhm | 55mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Fixed), UVLO | Current Limiting (Fixed), UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

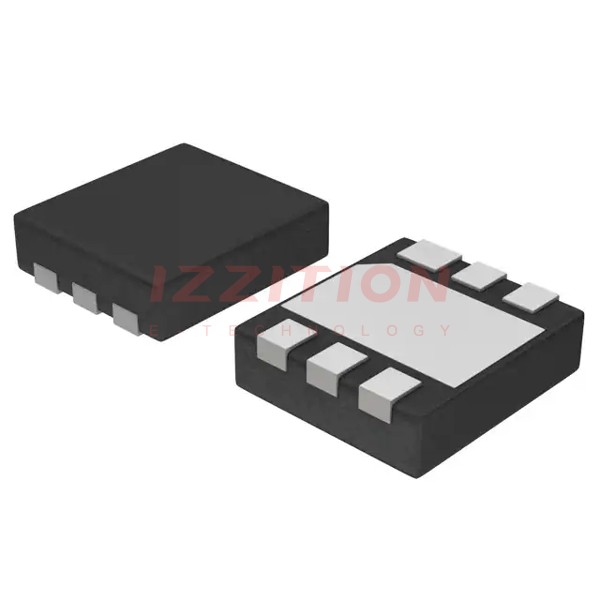

| Supplier Device Package | 6-UDFN (2x2) | 6-UDFN (2x2) |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
