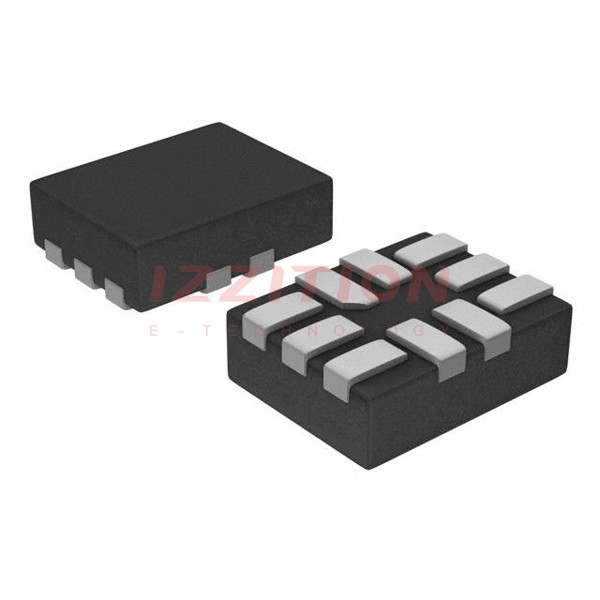

| Part Number | NCS214RMUTAG | NCS210RMUTAG | NCS211RMUTAG | NCS213RMUTAG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| Amplifier Type | Current Sense | Current Sense | Current Sense | Current Sense |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 1V/µs | 1V/µs | 1V/µs | 1V/µs |
| Gain Bandwidth Product | - | - | - | - |
| -3db Bandwidth | 60 kHz | 40 kHz | 25 kHz | 90 kHz |
| Current - Input Bias | 39 µA | 39 µA | 39 µA | 39 µA |
| Voltage - Input Offset | 1 µV | 0.55 µV | 0.55 µV | 5 µV |
| Current - Supply | 40µA | 40µA | 40µA | 40µA |
| Current - Output / Channel | - | - | - | - |
| Voltage - Supply Span (Min) | 2.2 V | 2.2 V | 2.2 V | 2.2 V |
| Voltage - Supply Span (Max) | 26 V | 26 V | 26 V | 26 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-UFQFN | 10-UFQFN | 10-UFQFN | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.4x1.8) | 10-UQFN (1.4x1.8) | 10-UQFN (1.4x1.8) | 10-UQFN (1.4x1.8) |
