| Part Number | NCP81158MNTXG | NCP81155MNTXG | NCP81158DMNTXG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 | 2 |
| Gate Type | N-Channel, P-Channel MOSFET | N-Channel MOSFET | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 13.2V | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | 0.6V, 3.3V | 1V, 2V | 0.6V, 3.3V |
| Current - Peak Output (Source, Sink) | - | - | - |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - |
| Rise / Fall Time (Typ) | 16ns, 11ns | 16ns, 11ns | 16ns, 11ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

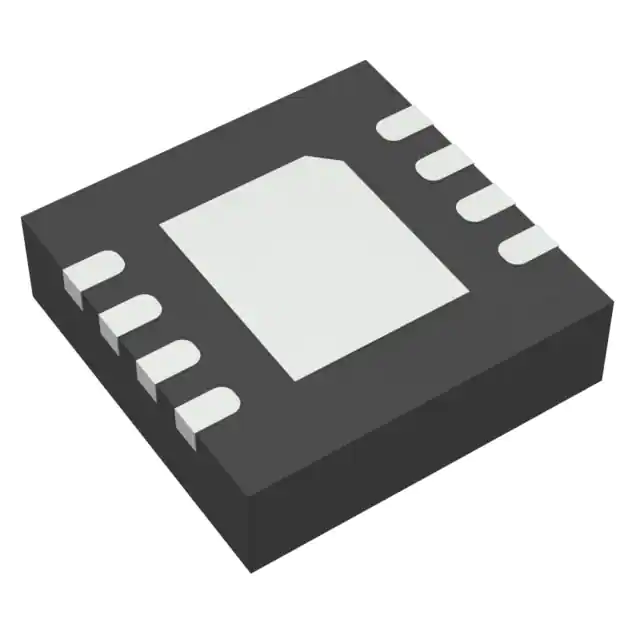

| Package / Case | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) | 8-DFN (3x3) | 8-DFN (3x3) |
