| Part Number | NCP781BMN050TAG | NCP781BMN150TAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 150V | 150V |
| Voltage - Output (Min/Fixed) | 5V | 15V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 9.5V @ 100mA | 9.5V @ 100mA |
| Current - Output | 100mA | 100mA |
| Current - Quiescent (Iq) | 55 µA | 55 µA |
| Current - Supply (Max) | 400 µA | 400 µA |
| PSRR | 83dB ~ 56dB (1kHz ~ 100kHz) | 83dB ~ 56dB (1kHz ~ 100kHz) |
| Control Features | - | - |
| Protection Features | Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

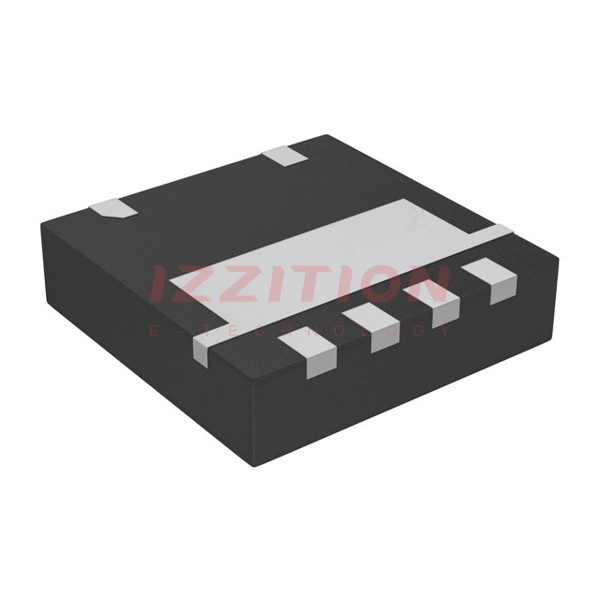

| Package / Case | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (3.3x3.3) | 6-DFN (3.3x3.3) |
