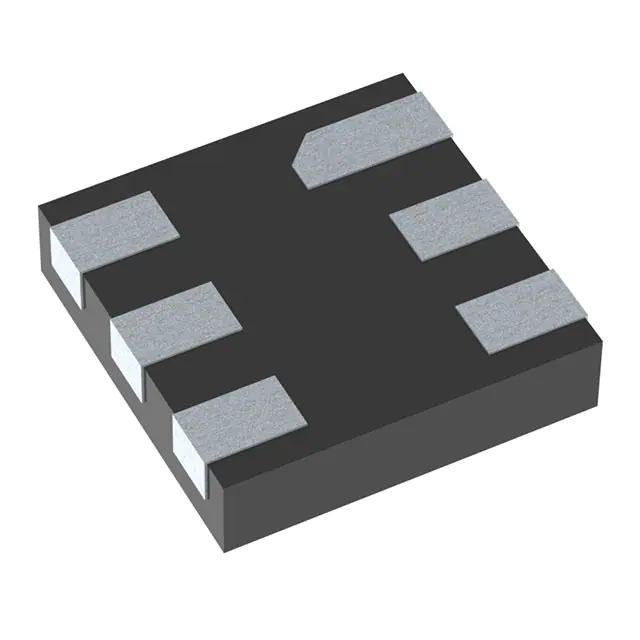

| Part Number | NCP715MX30TBG | NCP715MX50TBG | NCP715MX33TBG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 24V | 24V | 24V |
| Voltage - Output (Min/Fixed) | 3V | 5V | 3.3V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.4V @ 50mA | 0.35V @ 50mA | 0.35V @ 50mA |
| Current - Output | 50mA | 50mA | 50mA |
| Current - Quiescent (Iq) | 4.2 µA | 4.2 µA | 4.2 µA |
| Current - Supply (Max) | 5.8 µA | 5.8 µA | 5.8 µA |
| PSRR | 60dB (100kHz) | 56dB (100kHz) | 60dB (100kHz) |
| Control Features | - | - | - |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN | 6-XFDFN | 6-XFDFN |
| Supplier Device Package | 6-XDFN (1.5x1.5) | 6-XDFN (1.5x1.5) | 6-XDFN (1.5x1.5) |
