| Part Number | NCP711BMT300TBG | NCP711BMT500TBG | NCP711BMT330TBG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 18V | 18V | 18V |
| Voltage - Output (Min/Fixed) | 3V | 5V | 3.3V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.355V @ 100mA | 0.355V @ 100mA | 0.355V @ 100mA |
| Current - Output | 100mA | 100mA | 100mA |
| Current - Quiescent (Iq) | 3 µA | 3 µA | 3 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 80dB ~ 48dB (10Hz ~ 1MHz) | 80dB ~ 48dB (10Hz ~ 1MHz) | 80dB ~ 48dB (10Hz ~ 1MHz) |
| Control Features | Enable, Power Good | Enable, Power Good | Enable, Power Good |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

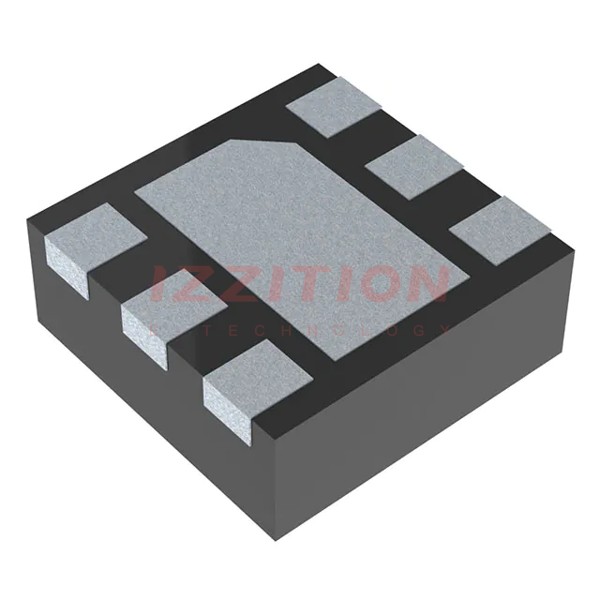

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFN (2x2) | 6-WDFN (2x2) | 6-WDFN (2x2) |
