| Part Number | NCP694H12HT1G | NCP694D12HT1G | NCP694H10HT1G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.2V | 1V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.56V @ 1A (Typ) | 0.56V @ 1A (Typ) | 0.64V @ 1A (Typ) |
| Current - Output | 1A | 1A | 1A |
| Current - Quiescent (Iq) | 100 µA | 100 µA | 100 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 70dB (1kHz) | 70dB (1kHz) | 70dB (1kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

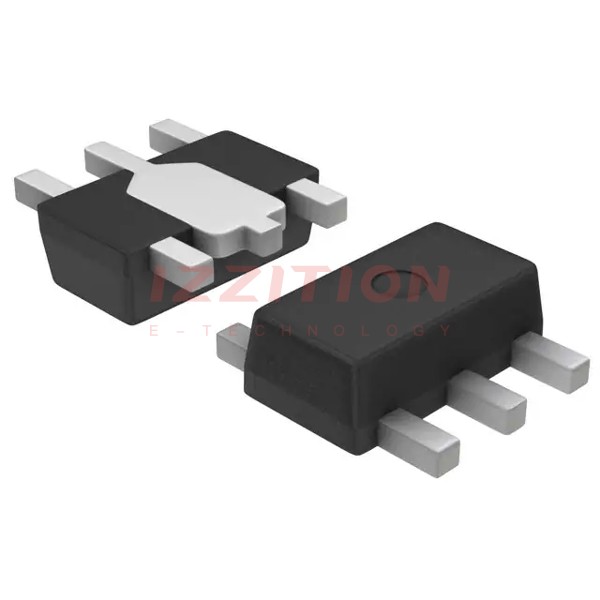

| Package / Case | SOT-89-5/6 | SOT-89-5/6 | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 | SOT-89-5 | SOT-89-5 |
