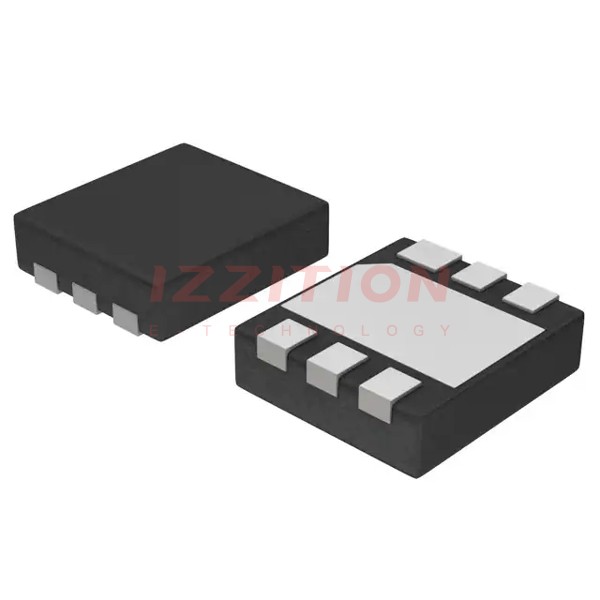

| Part Number | NCP693DMN10TCG | NCP693HMN10TCG | NCP693DMN12TCG |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 6.5V | 6.5V | 6.5V |
| Voltage - Output (Min/Fixed) | 1V | 1V | 1.2V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 1.45V @ 1A | 1.45V @ 1A | 1.38V @ 1A |
| Current - Output | 1A | 1A | 1A |
| Current - Quiescent (Iq) | 90 µA | 90 µA | 90 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 70dB (1kHz) | 70dB (1kHz) | 70dB (1kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-UDFN (1.8x2) | 6-UDFN (1.8x2) | 6-UDFN (1.8x2) |
