Please send RFQ , we will respond immediately.
| Part Number | NCP629FC35T2G | NCP629FC15T2G | NCP629FC30T2G | NCP629FC33T2G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 3.5V | 1.5V | 3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.125V @ 150mA | 0.225V @ 150mA | 0.125V @ 150mA | 0.125V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 180 µA | 170 µA | 175 µA | 180 µA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 62dB ~ 38dB (120Hz ~ 10kHz) | 62dB ~ 38dB (120Hz ~ 10kHz) | 62dB ~ 38dB (120Hz ~ 10kHz) | 62dB ~ 38dB (120Hz ~ 10kHz) |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

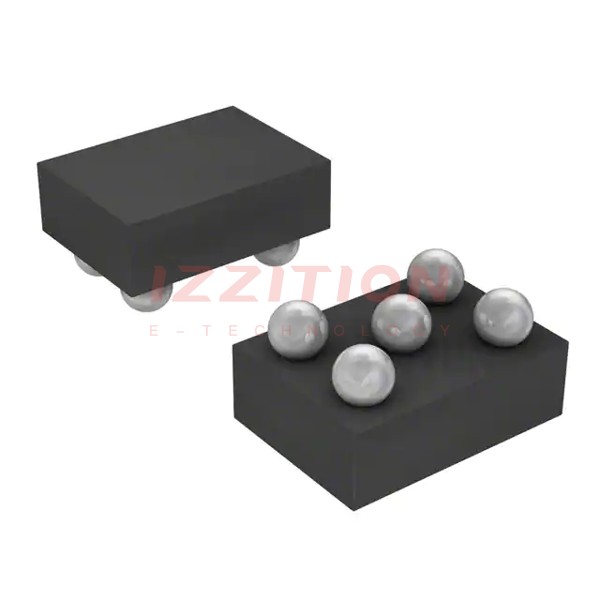

| Package / Case | 5-UFBGA, FCBGA | 5-UFBGA, FCBGA | 5-UFBGA, FCBGA | 5-UFBGA, FCBGA |
| Supplier Device Package | 5-FlipChip (1.028x1.19) | 5-FlipChip (1.028x1.19) | 5-FlipChip (1.028x1.19) | 5-FlipChip (1.028x1.19) |
