| Part Number | NCP59800BMNADJTAG | NCP59800BMNADJTBG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V |
| Voltage - Output (Max) | 5V | 6V |
| Voltage Dropout (Max) | 0.5V @ 1A | 0.5V @ 1A |
| Current - Output | 1A | 1A |
| Current - Quiescent (Iq) | 100 µA | 450 µA |
| Current - Supply (Max) | 450 µA | - |
| PSRR | 77dB ~ 27dB (100Hz ~ 1MHz) | 77dB ~ 27dB (100Hz ~ 1MHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |

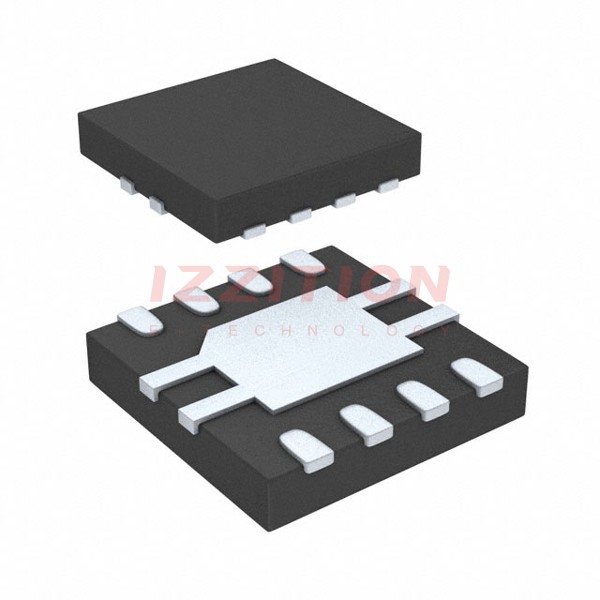

| Package / Case | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) | 8-DFN (3x3) |
