| Part Number | NCP59748MN2ADJTBG | NCP59749MN2ADJTBG | NCP59744MN2ADJTBG | NCP59748MN1ADJTBG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 3.6V | 3.6V | 3.6V | 3.6V |
| Voltage Dropout (Max) | 0.165V @ 1.5A | 0.28V @ 3A | 0.16V @ 3A | 0.165V @ 1.5A |
| Current - Output | 1.5A | 3A | 3A | 1.5A |
| Current - Quiescent (Iq) | - | - | - | - |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 50dB ~ 30dB (1kHz ~ 300kHz) | 60dB ~ 30dB (1kHz ~ 300kHz) | 72dB ~ 50dB (1kHz ~ 1MHz) | 50dB ~ 30dB (1kHz ~ 300kHz) |
| Control Features | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

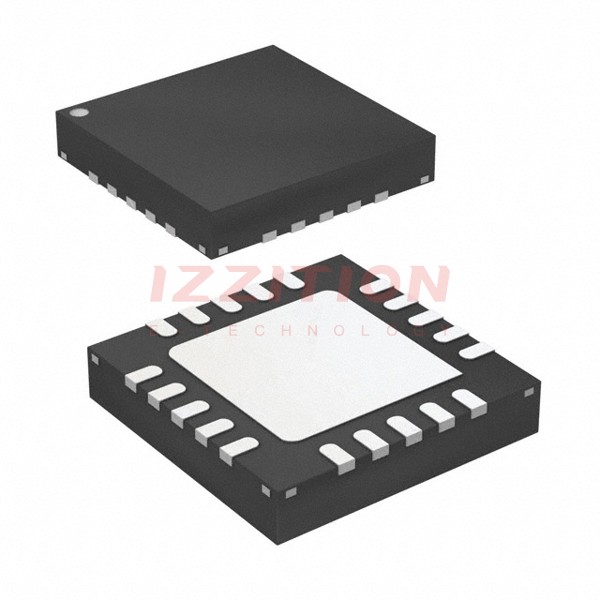

| Package / Case | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad | 10-VFDFN Exposed Pad |
| Supplier Device Package | 20-QFN (5x5) | 20-QFN (5x5) | 20-QFN (5x5) | 10-DFN (3x3) |
