Please send RFQ , we will respond immediately.

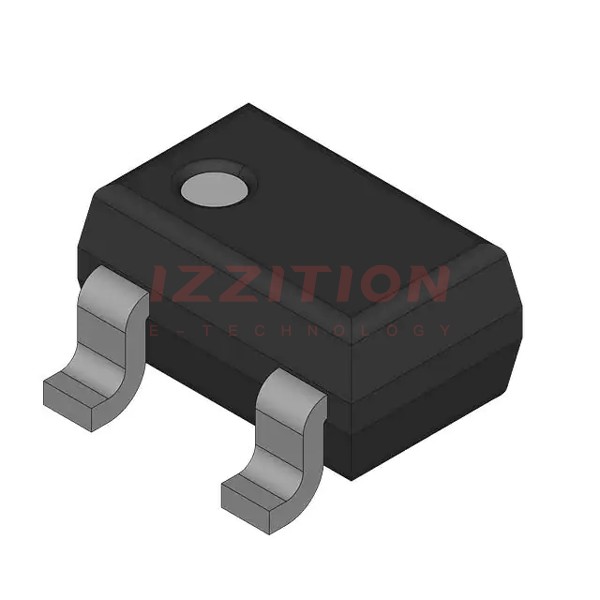

| Part Number | NCP583SQ28T1G | NCP580SQ28T1G | NCP583SQ18T1G | NCP583SQ25T1G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Output Configuration | - | Positive | Positive | Positive |
| Output Type | - | Fixed | Fixed | Fixed |
| Number of Regulators | - | 1 | 1 | 1 |
| Voltage - Input (Max) | - | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | - | 2.8V | 1.8V | 2.5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | - | 0.28V @ 120mA | 0.75V @ 150mA | 0.55V @ 150mA |
| Current - Output | - | 120mA | 150mA | 150mA |
| Current - Quiescent (Iq) | - | 160 µA | 1.5 µA | 1.5 µA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | - | 70dB (1kHz) | - | - |
| Control Features | - | Enable | Enable | Enable |
| Protection Features | - | Over Current | Over Current | Over Current |
| Operating Temperature | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | SC-82A, SOT-343 | SC-82A, SOT-343 | SC-82A, SOT-343 |
| Supplier Device Package | - | SC-82AB | SC-82AB | SC-82AB |
