Please send RFQ , we will respond immediately.

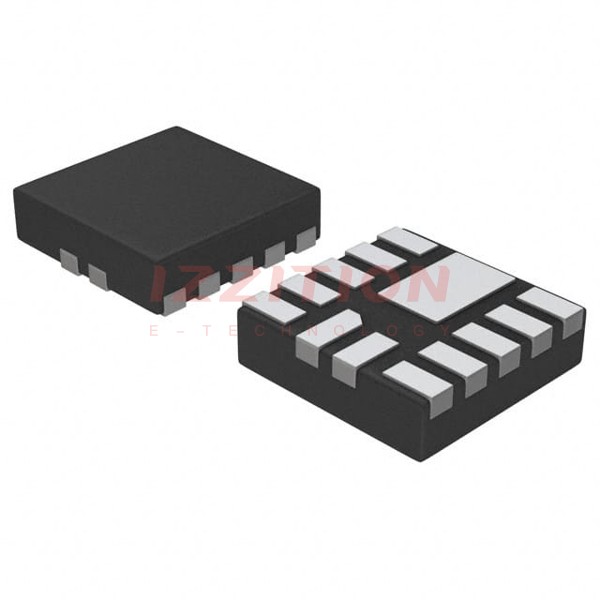

| Part Number | NCP5623CMUTBG | NCP5623MUTBG | NCP5623AMUTBG | NCP5623BMUTBG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Number of Outputs | 3 | 3 | 3 | 3 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 4.4V ~ 5.7V | - | - | 4.4V ~ 5.7V |
| Current - Output / Channel | 30mA | 30mA | 30mA | 30mA |
| Frequency | 1MHz | 1MHz | 1MHz | 1MHz |
| Dimming | I²C, PWM | I²C, PWM | I²C, PWM | I²C, PWM |
| Applications | Backlight, Camera Flash | Backlight, Camera Flash | Backlight, Camera Flash | Backlight, Camera Flash |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-UFLGA Exposed Pad | 12-UFLGA Exposed Pad | 12-UFLGA Exposed Pad | 12-UFLGA Exposed Pad |
| Supplier Device Package | 12-LLGA (2x2) | 12-LLGA (2x2) | 12-LLGA (2x2) | 12-LLGA (2x2) |
