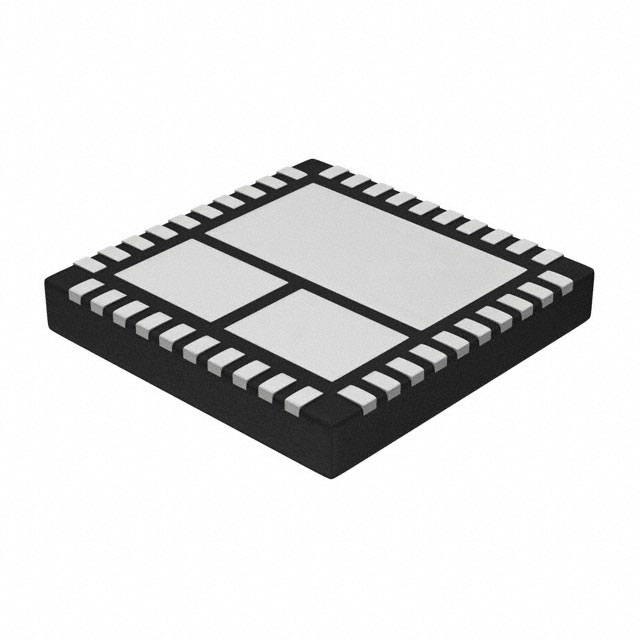

| Part Number | NCP5366MNR2G | NCP5369MNR2G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge | Half Bridge |
| Applications | Synchronous Buck Converters | Synchronous Buck Converters |
| Interface | PWM | PWM |
| Load Type | Inductive | Inductive |
| Technology | Power MOSFET | Power MOSFET |
| Rds On (Typ) | - | - |
| Current - Output / Channel | 40A | 35A |
| Current - Peak Output | - | 50A |
| Voltage - Supply | 4.5V ~ 13.2V | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 25V | 4.5V ~ 25V |
| Operating Temperature | 0°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit | Bootstrap Circuit, Status Flag |
| Fault Protection | Over Temperature, UVLO | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) | 40-QFN (6x6) |
