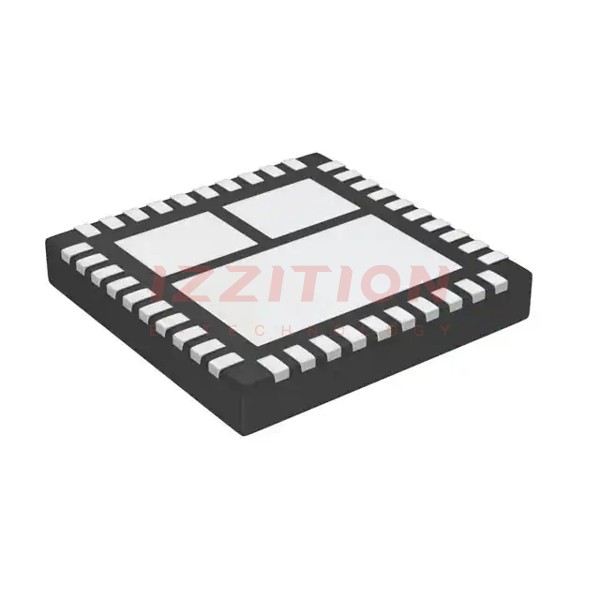

NCP5339MNTXG Image
×
Favorite
Compare
Add to RFQ
Share:
onsemi NCP5339MNTXG
Manufacturer No:
NCP5339MNTXG
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Datasheet:
NCP5339MNTXG Datasheet
ECAD Model:
-
Description:
IC MOSFET DVR HI/LO SIDE 40QFN
Delivery:
Payment:
Product Attributes
Output Configuration:
Half Bridge
Applications:
DC-DC Converters
Interface:
PWM
Load Type:
Inductive
Technology:
NMOS
Rds On (Typ):
-
Current - Output / Channel:
50A
Current - Peak Output:
80A
Voltage - Supply:
4.5V ~ 5.5V
Voltage - Load:
4.5V ~ 16V
Operating Temperature:
-40°C ~ 150°C (TJ)
Features:
Bootstrap Circuit
Fault Protection:
Over Temperature, UVLO
Mounting Type:
Surface Mount
Package / Case:
40-VFQFN Exposed Pad
Supplier Device Package:
40-QFN (6x6)
0
Remaining
View Similar
In Stock
UnitPrice:
$2.75
Quantity:
153
